30W I-CLOUD All In One Solar Light

Short Description:

30W I-CLOUD ALL IN ONE SOLAR LIGHT(SNW-230) Application: For Carport, Stadium, Square and Street Lighting. Model No.: SN-W230 30W LED Integrated with 70W PV and 44AH Battery APP REMOTE CONTROL • Modify specification remotely • Sub-street light networking • Available to send voice notification remotely • Music play remotely • Video real-time monitoring • Remote alarm function • Key alarm on the pole • Available to check video history record remotely • Automatically error warning ...


Product Detail

Product Tags

30W I-CLOUD ALL IN ONE SOLAR LIGHT(SNW-230)
Application: For Carport, Stadium, Square and Street Lighting.
Model No.: SN-W230
30W LED Integrated with 70W PV and 44AH Battery
APP REMOTE CONTROL
• Modify specification remotely
• Sub-street light networking
• Available to send voice notification remotely
• Music play remotely
• Video real-time monitoring
• Remote alarm function
• Key alarm on the pole
• Available to check video history record remotely
• Automatically error warning remotely
• GPRS positioning
General Specification

LED power

30W

Solar panel

70W, Cell brand: Solarworld

Lithium Battery

44AH Lithium

Lumen

3000~3300lm

Mounting height

6m

Mounting distance

30~35m for one-way road,60-70m for two-way road,  intercross distance.

Working Method

Timer control, APP, Motion sensor

Waterproof degree

IP65

LED Beads Qty

30; LED Brand: Bridgelux  45

CCT

3000~6000K

Working Temp.

-30~+60C

Working Humidity

15~90%RH

Installation

30-Icaiosl02 30-Icaiosl30-Icaiosl01

Packing Detail

Product size/Weight

1210*340*45mm/17KG

Pack size/Volume

1320*400*200mm /18KG

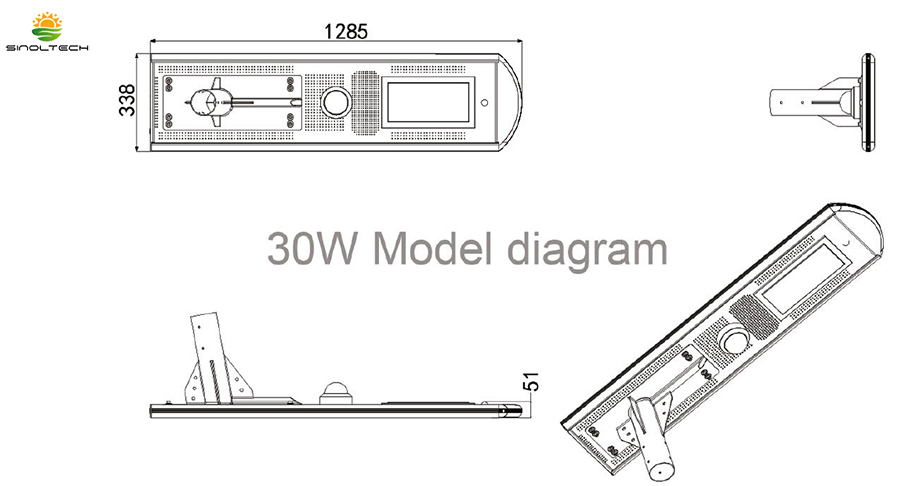

30W-I-CLOUD-Diagram-1

pdfDownload DATA SHEET
