Express Way Solar LED Street Light 120W

Short Description:

Express Way Solar LED Street Light 120W THOR Series T12 THOR Solar led street light is an ideal model to be installed on high poles like 10m 12m 14m etc. It is the King among solar street lights on aspect of lumens and battery backup. Wireless intelligent system and hybrid type are available. Lighting Parameter 120W丨15800lm Battery Capacity 24V 1680WH Solar Panel(Min) 360W 36V Apply to Height of Pole 8~14M Warranty 3 Years APPLICATIONS: * Airport Lighting * Express Way (High W...


Product Detail

Product Tags

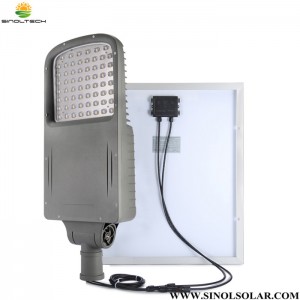

Express Way Solar LED Street Light 120W

THOR Series T12

THOR Solar led street light is an ideal model to be installed on high poles like 10m 12m 14m etc. It is the King among solar street lights on aspect of lumens and battery backup. Wireless intelligent system and hybrid type are available.

Lighting Parameter 120W丨15800lm
Battery Capacity 24V 1680WH
Solar Panel(Min) 360W 36V
Apply to Height of Pole 8~14M
Warranty 3 Years

APPLICATIONS:

* Airport Lighting

* Express Way (High Way) Lighting

* Public Square Lighting

* Coastal Areas & Jetties

* Car Parks Lighting

* Rural & Remote Area Lighting

* Any Road With High Pole Lighting

Key Advantages:

PERFECT FOR HIGH POLE LIGHTING 8~14M POLES

THOR is the latest model of solar high power solar street light, it adopts the same concept of ALL-IN-TWO that put every components inside of light body except solar panel.

The max battery capacity is reaching 12V 180AH with NCM battery or 12.8V 97.2AH with LifePO4 battery. It is the first real high power solar model on market.

Comparing with normal All in one solar street light 100W 120W. THOR is too powerful to compete with all in one. THOR has great advance on lumens output, backup time for autonomy, max 36V solar panel, What's more, THOR is using aluminium die casting as fixture body. It reaches IK10 standards. THOR is your best choice for your solar street light projects.

Product Specification:

Model No. T6 (7800lm) T7 (8800lm) T8 (10800lm) T9 (11800lm) T10 (13800lm) T12 (15800lm)
Fixture IP IP67 IP67 IP67 IP67 IP67 IP67
Materials

Aluminium Die Casting

LED Power 60W 70W 80W 90W 100W 120W
LED Type Lumileds SMD3030 248Pcs
Luminous Flux 7800lm 8800lm 10800lm 11800lm 12800lm 15800lm
Beam angle 145*83 Degrees
Color Temp. 4000K/5000K/6000K Optional
CRI >81
Max ExtendedBattery Capacity 2160WH 24V 2160WH 24V 2160WH 24V 2160WH 24V 2160WH 24V 2160WH 24V
Charge Time 5 Hours
Discharge Time >24 Hours
Control System Programmable MPPT Controller / Hybrid Controller / Wireless Intelligent Control
Control Method Automatic dusk to dawn / Time Control / Manual ON-OFF
Lighting Modes 100% Continuous lighting / Energy saving / Customized modes.
Solar Panel(Mono) 120W 36V 150W 36V 200W 36V 250W 36V 280W 36V 300W 36V
Cylinder PV(Optional) 300W(3*Q100) 300W(3*Q100) 420W(3*Q140) 420W(3*Q140) 560W(4*Q140) 560W(4*Q140)
Post Height(Optional) 6~10 Meters 6~10 Meters 8~12 Meters 8~12 Meters 8~14 Meters 8~14 Meters
N.W./Light 15.80KG 15.80KG 20.35KG 20.35KG 20.35KG 20.35KG
G.W./Light 16.30KG 16.30KG 21.60KG 21.60KG 21.60KG 21.60KG
Product Size(mm) 800*310*116 800*310*116 800*310*116 800*310*116 800*310*116 800*310*116
CTN Size(mm) 930*400*220 930*400*220 930*400*220 930*400*220 930*400*220 930*400*220
Working Temp. -20 °C ~ +65 °C

01-structure

02-dimension
