Wall Mount Solar Ventilator

Short Description:

WALL Mount Solar Ventilator Application Area: SERVES WELL EVERYWHERE AND SUITS ALL KINDS OF BUILDING INSTALLATION Strengthen air circulation Remove heat, moisture & dust Deduct harmful mildews Solar powered, environmental friendly Once Pay, Benefit Long Enjoy the gracious solar energy to let your space breath freely at any time! Customization Services: In order to extend product functions, we offer tailor-make services, you can: Request LARGER POWER SOLAR PANEL for stronger venting flow -...


Product Detail

Product Tags

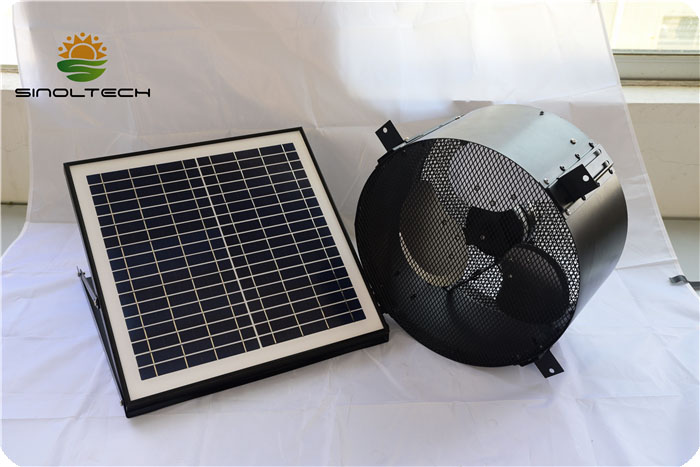

WALL Mount Solar Ventilator
Application Area:
SERVES WELL EVERYWHERE AND SUITS ALL KINDS OF BUILDING INSTALLATION
Strengthen air circulation
Remove heat, moisture & dust
Deduct harmful mildews
Solar powered, environmental friendly
Once Pay, Benefit Long
Enjoy the gracious solar energy to let your space breath freely at any time!
Customization Services:
In order to extend product functions, we offer tailor-make services, you can:
Request LARGER POWER SOLAR PANEL for stronger venting flow
-Order YOUR OWN COLOR for the product’s powder coating finished
-Add BATTERY to have the fan go on working still under solar DC energy after sunset
-Use AC/DC POWER ADAPTER to have the fan continue working under grid AC backups in any sunless period
-Attach THERMOSTAT to have the fan work/stop at preset temperature
-Add POWER CORD SWITCH to have the fan start/stop flexibly as per desire
-Ask for MOUNTING BRACKET for the solar panel
-Request OEM / ODM MOUNTING FRAME for the fan host
wmsv (1)wmsv (2)wmsv (3)

Wall-mount Solar Powered Attic Fan- Standard Series

Model No. Solar PV Power/Dimension Fan Size/Air duct Dia. Working Condition AC
SN2015010 15W/365*365*25mm 12INCH/317mm Daytime under sun Optional
SN2013013 15W/365*365*25mm 14INCH/368mm Daytime under sun Optional
SN2015011 20W/365*410*25mm 14INCH/368mm Daytime under sun Optional
SN2015004 30W/415*495*25mm 14INCH/368mm Daytime under sun Optional

Wall-mount Solar Powered Attic Fan- With Built-in Battery

Model No.

Solar PV Power/Dimension

Fan Size/Air duct Dia. Battery Working Condition
SN2013014

40W/495*550*25mm

15W for Motor;25W for Battery

12INCH/317mm 9.6AH Day & Night 24 hrs
SN2015013

60W/495*782*30mm

25W for Motor;35W for Battery

14INCH/368mm 9.6AH Day & Night 24 hrs

Wall-mount Solar Powered Attic Fan- With AC Adaptor

Model No.

Solar PV Power/Dimension

Fan Size/Air duct Dia.

AC Adaptor

Working Condition

SN2015010+SN2013016

15W/365*365*25mm

12INCH/368mm

Model: SN2013016

AC input: 100-240V,

DC output: 18V 1A,

Including 3m cable to

connect fan with this power

adapter

Day & Night 24 hrs
SN2013013+SN2013016

15W/365*365*25mm

14INCH/368mm

Day & Night 24 hrs
SN2015011+SN2013016

20W/365*410*25mm

14INCH/368mm

Day & Night 24 hrs
SN2015004+SN2013016

30W/415*495*25mm

14INCH/368mm

Day & Night 24 hrs

pdfDownload DATA SHEET
